LSZ-F02CS Canister Load Cell

Feature

Canister load cell
Senior stainless steel
Easy to install, stable&reliable
Anti-fatigue, contains strong side force resistance, can withstand tension and pressure of two kinds of work
  • LSZ-F02CS

  • SZOBTE

  • LSZ-F02CS

Availability:
Quantity:

Product Description


LSZ-F02CS Canister Load Cell

                                                          Miniature Type Series


Feature



Canister load cell

Senior stainless steel

Easy to install, stable&reliable

Anti-fatigue, contains strong side force resistance, can withstand tension and pressure of two kinds of work





Capacities

0-50kg

Specification



Rated Output

1.0/2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.03% of rated output

Temp. effect on output

0.002% of applied output/

Temp. Effect on zero

0.002% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-F02CS/5kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

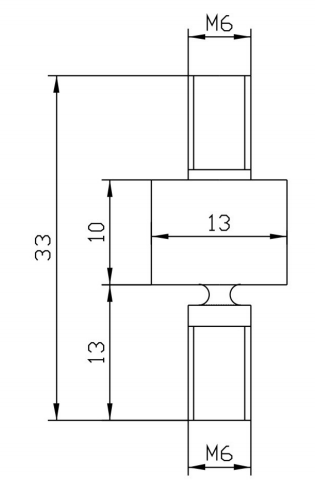

 Dimensions

图片 16

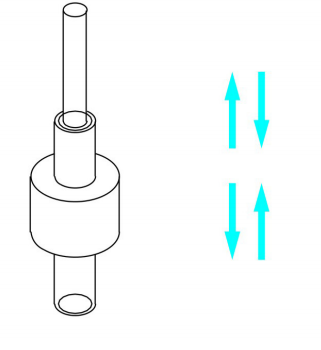

Force Direction



图片 17











Note: The information is for reference only. The details are subject to orders
