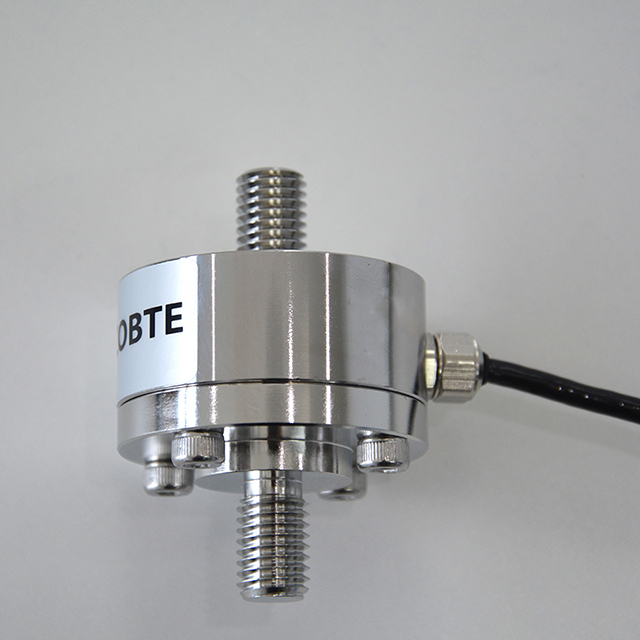

LSZ-F02C

Availability:
Quantity:

Product Description

Features

 Senior stainless steel

 Easy to install, stable & reliable

 Low height and strong rigidity

 Apply to testing machine, batching scales, crane scales, pull and push, button tester and special scales, etc

 Capacities


0-5kg,10kg,20kg,30kg,50kg,100kg,200kg

Specification


Rated Output

1.0/2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.03% of rated output

Temp. effect on output

0.002% of applied output/

Temp. Effect on zero

0.002% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65/IP67

Construction

2m

type

LSZ-F02C/5kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

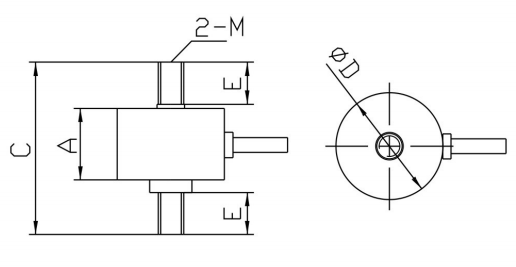

 Dimensions


                   Size(mm)



CAP(kg)

A

  C

  E

2-M

D

0-20kg

17

  38

10.5

M5

25.4

30-200kg

25

52

13

M10

34


Note: The information is for reference only. The details are subject to orders
