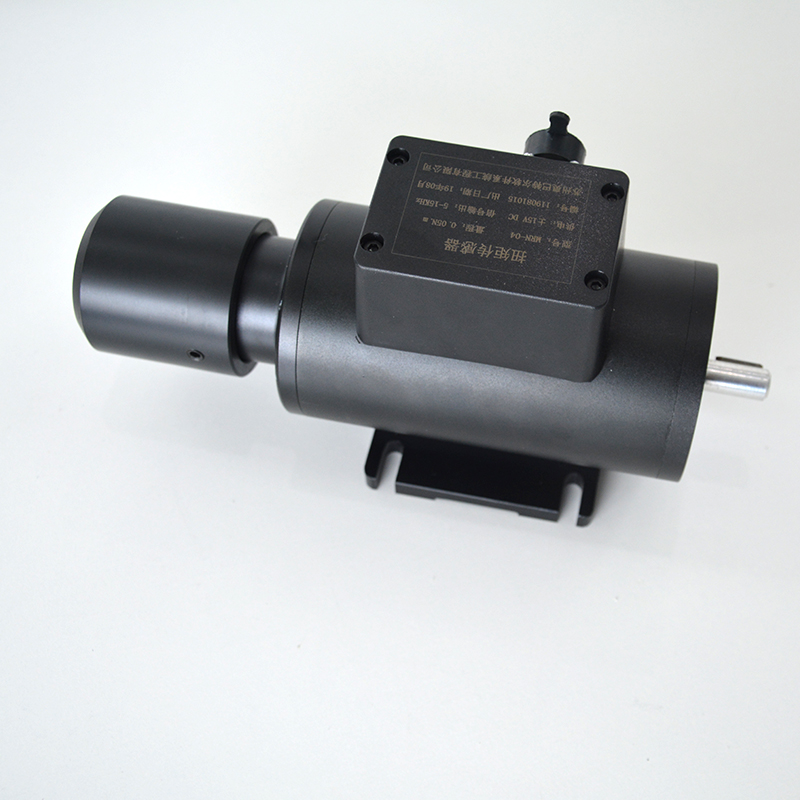

MRN-04 Torque sensor

 Torque measurement
 Energy and signal non-contact transmission, output signal digitalized ( additional mode required)
 Is designed for both static and dynamic torque measurement
 The signal transmission is independent of the measured object rotates or not, no matter of the rotation speed and rotation direction
 There is no collecting ring or other ware parts, can undertake long time running in high speed .
 High precision, good stability, small size, light weight and easy to install
 Positive and negative torque signals can be continuously transmitted without repeated zero cleaning
 Strong anti-interference performance
 It can be installed in any position and any direction
  • MRN-04
  • SZOBTE
Availability:
Quantity:

Product Description

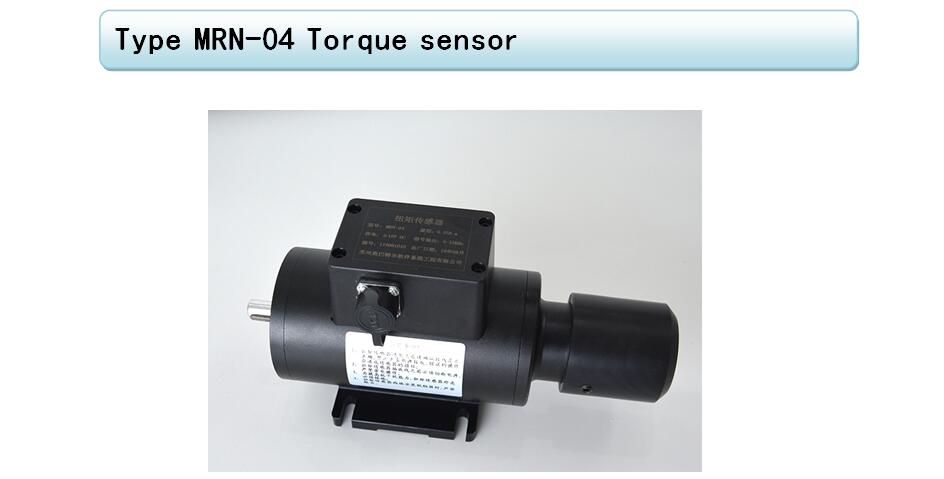

MRN-04

  Feature



n   Torque measurement

n  Energy and signal non-contact transmission, output signal digitalized ( additional mode required)

n   Is designed for both static and dynamic torque measurement

n  The signal transmission is independent of the measured object rotates or not, no matter of the rotation speed and rotation direction

n  There is no collecting ring or other ware parts, can undertake long time running in high speed .

n  High precision, good stability, small size, light weight and easy to install

n  Positive and negative torque signals can be continuously transmitted without repeated zero cleaning

n  Strong anti-interference performance

n  It can be installed in any position and any direction

Capacity

0~±5Nm0~±(10,20Nm

Application

Widely used in measurement of speed and torque of motor, generator,  draught fan, aircraft, mine industry, reducer, ship, diesel engine


Instrument parameters

Accuracy

±0.2%F·S

Frequency response

100μs

Nonlinearity

<±0.2%F·S

Repeatability

<±0.1% F·S

Hysteresis

<0.1% F·S

Temp. effect on output

<0.2% F·S

Temp. Effect on zero

<0.2% F·S/10

Output impedance

350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω(selectable)

Insulation impedance

>500Ω

Static overload

120% 150% 200%(selectable)

Safe temp. range

-10℃~50℃

Storage temp.

-20~70

Power supply

±15V±5%

Power consumption

<200mA

Signal output

0-12V square wave; no-load: 10kHz; forward full   rang:15kHz, reverse full range5kHz

Rated torque

10kHz±5kHz

Suitable speed

<5000times/sec

Note: The information is for reference only. The details are subject to orders
