LSZ-S68 Load cell

 Single point load cell
 Senior aluminum
 High accuracy, high stability
 Easy to install
 Applications: Suitable for retail and postal weighing package weighing systems, parts counting and small hopper scales, bench scales, etc
  • LSZ-S68

  • SZOBTE

Availability:
Quantity:

Product Description

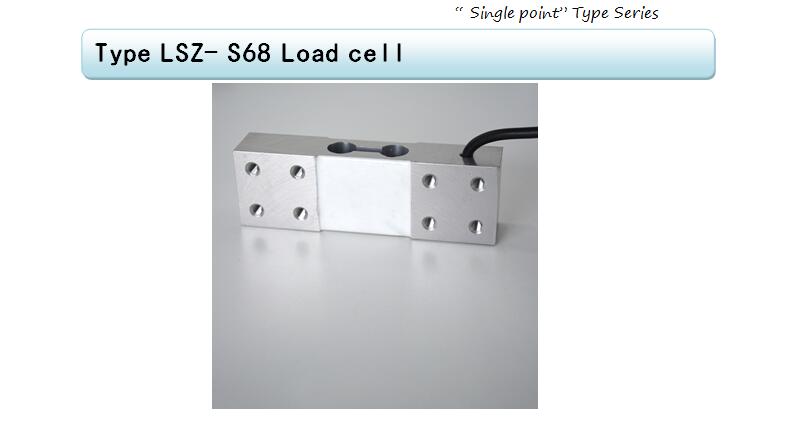

S68

 Feature



n  Single point load cell

n  Senior aluminum

n  High accuracy, high stability

n  Easy to install

l  Applications: Suitable for retail and postal weighing package weighing systems, parts counting and small hopper scales, bench scales, etc

 Capacities

0-50kg, 100kg

  Specification



Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.5% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.1% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.05% of rated output/

Safe temp. Range

-10 to+70

Temp.Compensated

-10 to+30

Safe Overload

150%

Input Impedance

387Ω±10Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

  2m

type

LSZ-S68/50kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

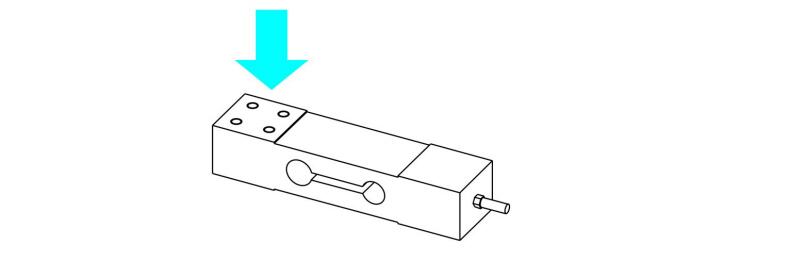

Force Direction

QQ截图20191024135239

Note: The information is for reference only. The details are subject to orders
