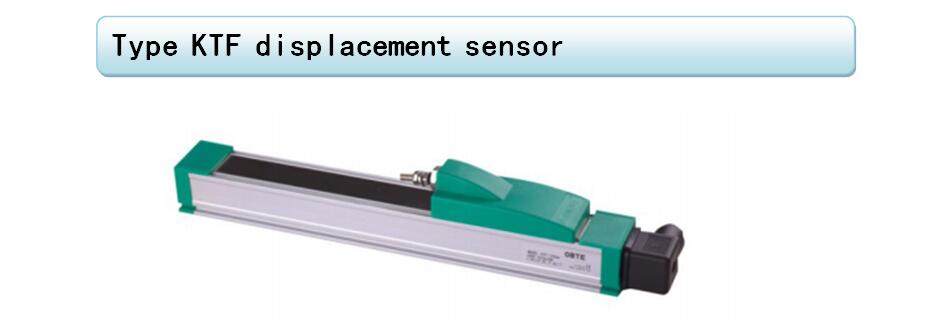

Type KTF displacement sensor

Feature
 Suitable for location detection of all types of equipment
 Such as: injection molding machine, pressure molding machine, die casting machine, rubber machine, shoe machine, EVA injection molding machine
 Resolution: no break resolution
 Capacity from 5mm to 4800mm, meet measurement requirements in all areas of equipment nowadays.
 cold and high temperature resistant and anti-aging type. -60℃~+150℃
 Anti-electrostatic, defend radiation, high wear-resisting engineering slip ring and full seal
  • KTF

  • SZOBTE

Availability:
Quantity:

Product Description

KTF
  Feature

  1.  Suitable for location detection of all types of equipment

  2. Such as: injection molding machine, pressure molding machine, die casting machine, rubber machine, shoe machine, EVA injection molding machine

  3. Resolution: no break resolution

  4. Capacity from 5mm to 4800mm, meet  measurement requirements in all areas of equipment nowadays.

  5. cold and high temperature resistant and  anti-aging type. -60ºC~+150ºC

  6. Anti-electrostatic, defend radiation, high wear-resisting engineering slip ring and full seal

Capacity
75mm,100mm,125mm,150mm,175mm,200mm,225mm,250mm,275mm,300mm,325mm,350mm,375mm,400mm,425mm,450mm,475mm,500mm,550mm,600mm,650mm,700mm,750mm,800mm,850mm,900mm,950mm,1100mm,1200mm

Instrument parameters

KTF 75mm~
110mm
125mm~
175mm
200mm~
550mm
600mm~
1000mm
1150mm~
1250mm
>2000mm
Linear precision  (±%FS) ±0.2% ±0.1% ±0.05% ±0.05% ±0.04% ±0.25%
Resistance±10% 5kΩ 10kΩ 20kΩ


Effective stroke Range+7mm
   Resolution infinite
Repeatability precision 0.01mm
Max speed 10m/s
Temp. drift Infinitesimal
Working temp. -20ºC~150ºC
Output impedance 350Ω±1Ω,700Ω±3Ω,1000Ω±5Ω(selectable)
Output 0~100% input voltage(change with the movement of the slider)
Sensitivity 1
Recommended voltage  ≤10mA
Size Range+179.5mm




Note: The information is for reference only. The details are subject to orders

We are a Chinese Manufacture of load cells, torque sensors, pressure sensors, multi-axis sensors and related instruments and software, which is founded in 2011. Our products are UNIQUE DESIGNED FOR WEIGHT AND FORCE MEASUREMENT  in such diversified applications as process control and factory automation. Other applications exist in numerous fields of science and industry for our load cells. SZOBTE supplies test and measurement products to many industries, especially medical, robotic, and aerospace.
We welcome the presence and guidance of every new and old customer. SZOBTE is your trustworthy partner!
Hope to establish Win-Win relationship with your esteemed company in the near future!
