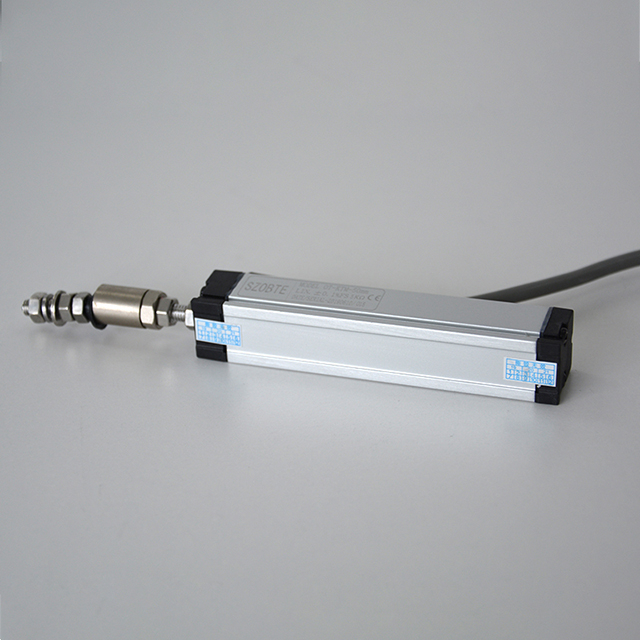

OT-KTM displacement sensor

Suitable for location detection of all types of equipment
Such as: injection molding machine, pressure molding machine, die casting machine, rubber machine, shoe machine, EVA injection molding machine
Resolution: no break resolution
Capacity from 5mm to 300mm, meet measurement requirements in all areas of equipment nowadays.
cold and high temperature resistant and anti-aging type. -60℃~+150℃
Anti-electrostatic, defend radiation, high wear-resisting engineering slip ring and full seal
  • OT-KTM

  • SZOBTE

Availability:
Quantity:

Product Description

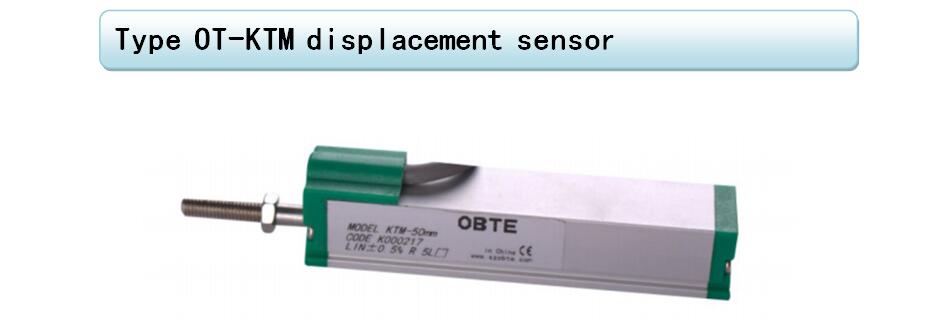

QQ截图20191024164044

  Feature



n   Suitable for location detection of all types of equipment

n  Such as: injection molding machine, pressure molding machine, die casting machine, rubber machine, shoe machine, EVA injection molding machine

n  Resolution: no break resolution

n  Capacity from 5mm to 300mm, meet  measurement requirements in all areas of equipment nowadays.

n  cold and high temperature resistant and  anti-aging type. -60~+150

n  Anti-electrostatic, defend radiation, high wear-resisting engineering slip ring and full seal

Capacities

10mm, 15mm25mm50mm75mm100mm125mm150mm175mm200mm225mm250mm275mm300mm

Instrument parameters

Linear precision

±0.1%(10~75mm   effective range)

±0.05%(100~300   effective range)

Resistance(kΩ±10%)

1kΩ(10~75mm effective range)

5kΩ(100~300mm effective range)

Effective stroke

Range+3m

   Resolution

infinite

Repeatability precision

0.01mm

Max speed

5/s

Temp. drift

Infinitesimal

Working temp.

-6℃~150℃

Output impedance

350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω(selectable)

Output

0~100% input voltage(change with the movement of the   slider)

Sensitivity

1

Recommended   voltage

 ≤10mA

Size

Range+179.5mm

Note: The information is for reference only. The details are subject to orders
