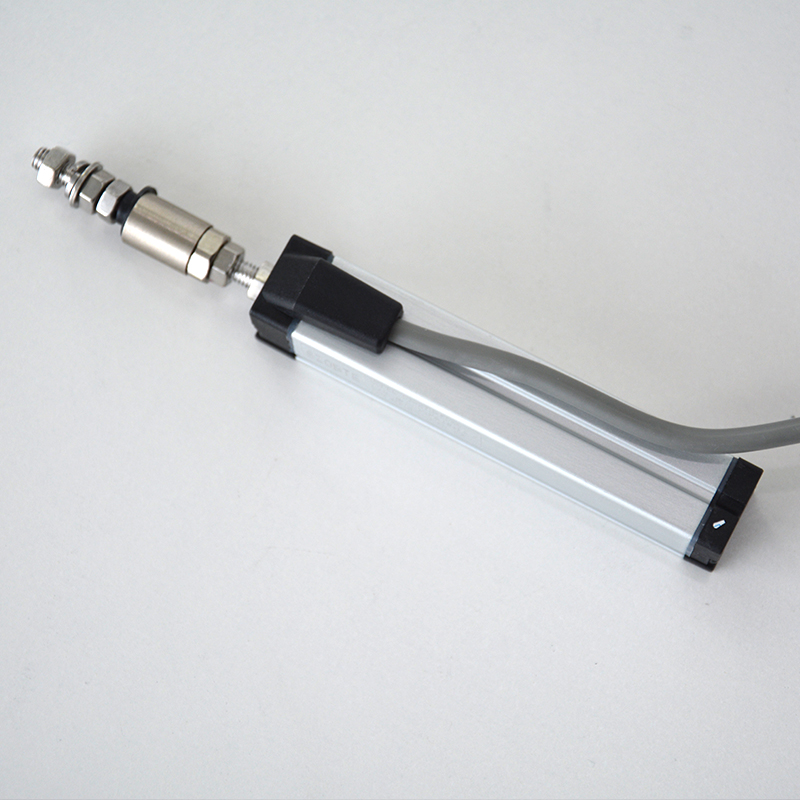

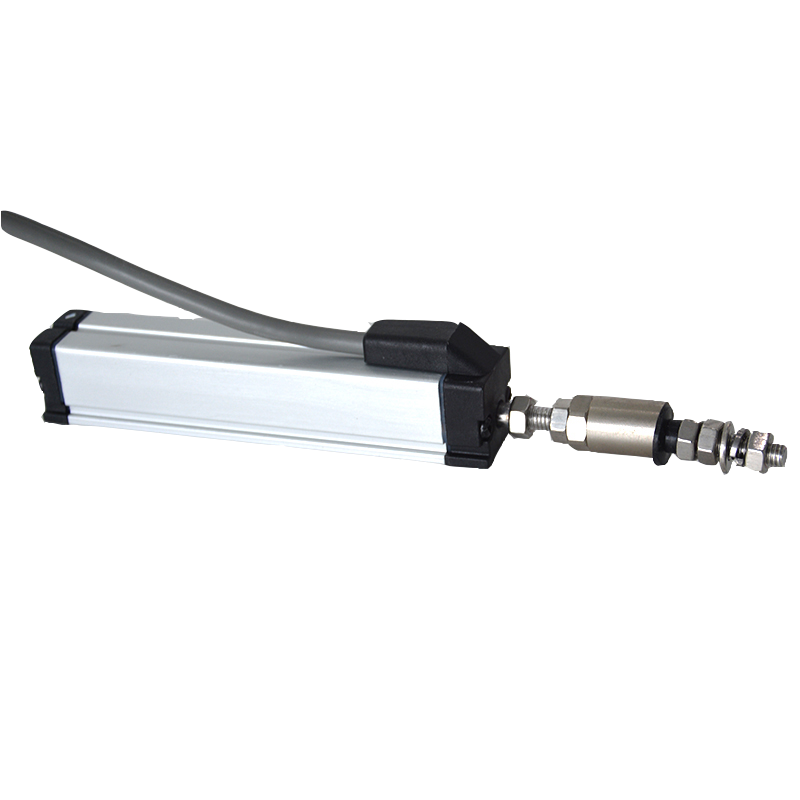

KTC Displacement sensor

 Suitable for location detection of all types of equipment
 Such as: injection molding machine, pressure molding machine, die casting machine, rubber machine, shoe machine, EVA injection molding machine
 Resolution: no break resolution
 Capacity from 5mm to 4800mm, meet measurement requirements in all areas of equipment nowadays.
 cold and high temperature resistant and anti-aging type. -60℃~+150℃
 Anti-electrostatic, defend radiation, high wear-resisting engineering slip ring and full seal
  • KTC

  • SZOBTE

Availability:
Quantity:

Product Description

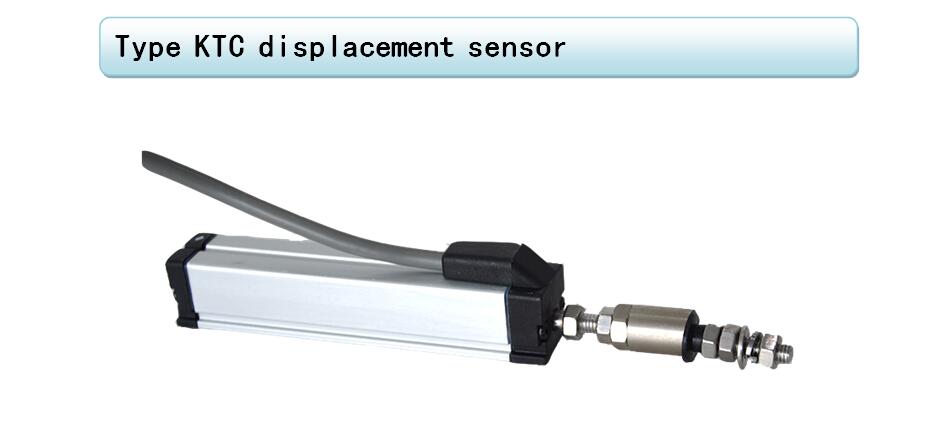

QQ截图20191021164058

  Feature



n   Suitable for location detection of all types of equipment

n  Such as: injection molding machine, pressure molding machine, die casting machine, rubber machine, shoe machine, EVA injection molding machine

n  Resolution: no break resolution

n  Capacity from 5mm to 4800mm, meet  measurement requirements in all areas of equipment nowadays.

n  cold and high temperature resistant and  anti-aging type. -60~+150

n  Anti-electrostatic, defend radiation, high wear-resisting engineering slip ring and full seal

Capacity

75-1200mm

Instrument parameters

Linear   accuracy

±0.08%(75-250mm   effective stroke)

±0.05%(275-650mm   effective stroke)

±0.04%(650-1200mm   effective stroke )

Resistance(kΩ±10%)

5kΩ(75-550mm effective stroke)

10kΩ(600-1000mm effective stroke)

20kΩ(1100-1200mm effective stroke )

Effective stroke

Capacity+7mm (Buffer 3.5mm at each end)

   Resolution

infinite

Repeatability precision

0.01mm

Maximum speed

10m/s

Temp. drift

Infinitesimal

Temp. effect on output

<0.2% F·S

Working temp.

-60℃~150℃

Output impedance

350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω(selectable)

Output

0~100% input voltage

Sensitivity

1

Recommended voltage

 ≤10mA





Note: The information is for reference only. The details are subject to orders
