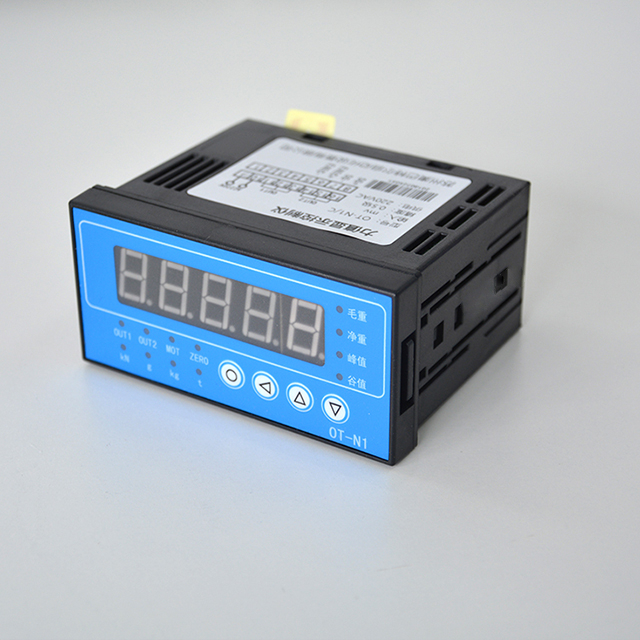

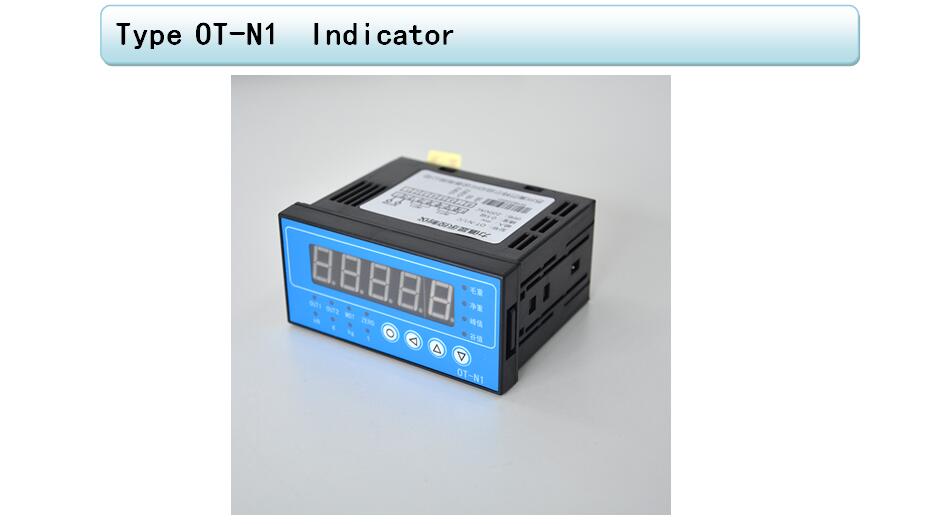

OT-N1 Indicator

Product overviews

Total value, net value, peak value and valley value can be displayed, switchable at any time.

Two way comparison output, 6 alarm modes are available. Peak value and valley value USES two comparison values as the threshold value. Peak comparison occurs when real-time weight exceeds the peak threshold. When the real-time weight is lower than the valley threshold value, the valley value comparison is carried out.

With zero automatic tracking function, stability judge function, automatic reset function, etc

Indicator definition: 12 indicators, alarm 1 、alarm 2、 stability、 zero、total value、net value、 peak value、 valley value、 t、kg、g、kn

 Specification

External dimensions: 96(W)x48(H)mm

                              160(W)x80(H)mm

Display mode: 5 Red LED digit single display

Input signal:  S±25mV

Output control: 2 point

Aux power: 10V/150mA

Supply Power: 200V AC

  Technical specification

Power: 85~265VAC、50Hz、7.5W

Ambient environment: 0~50℃    10~85%RH

Digital display: 5 red LED digit display

Display range:-19999~45000, overload display

Maximum vertification points: 10000

Display countdown 9~0 on boot screen when power on

Automatically reset when power on: The automatic zero clearing range depends on the range of the parameters

Comparison control output: 6 comparison modes, select by setting.

Note: The information is for reference only. The details are subject to orders
