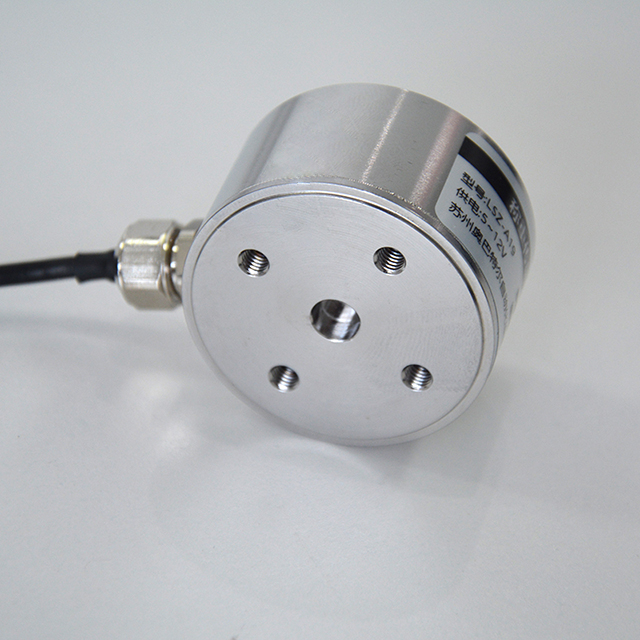

LSZ-A19 Load Cell

Miniature load cell, low height, small deformation range
Senior stainless steel
Pull and push force gauge, high dynamic response frequency
Prevent Overload
Apply to in pull and push force meter, injection and mold industry, robot grasping, pressing, testing and controlling of pulling pressure, automobile assembly force value testing, etc
  • LSZ-A19

  • SZOBTE

Availability:
Quantity:

Product Description

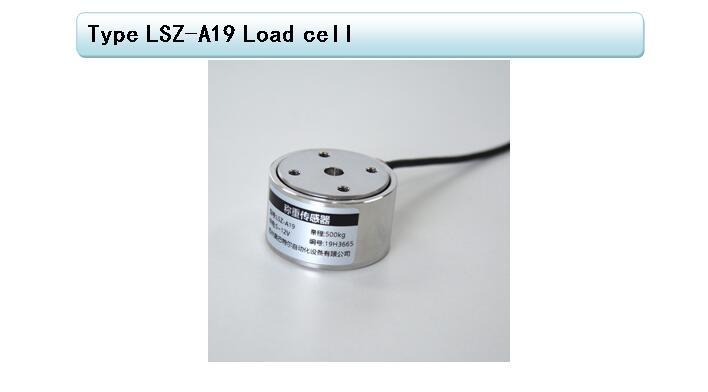

A19

 Feature



n  Miniature load cell, low height, small deformation range

n  Senior stainless steel

n  Pull and push force gauge, high dynamic response frequency

n  Prevent Overload

l  Apply to in pull and push force meter, injection and mold industry, robot grasping, pressing, testing and controlling of pulling pressure, automobile assembly force value testing, etc

 Capacities

0.1, 0.2, 0.5, 1,2,5,10,20KN

 Specification

Rated Output

2.0±10% mV/V

Zero Balance

0.05   mV/V

Nonlinearity

±0.1% of rated output

Hysteresis

±0.1% of rated output

Repeatability

±0.1% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.05% of rated output/

Safe temp. Range

-10 to+60

Temp.Compensated

-20 to+80

Input Impedance

385 Ω±10Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Recommended  Excitation

5~10V

Maximum Excitation

12V

Safe Overload

150%

Ultimate Overload

200%

Construction

3m

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)



Force Direction

 QQ截图20191024095136

Note: The information is for reference only. The details are subject to orders
