LSZ-F04C Load cell

 Senior alloy steel
 Low height, strong side force resistance
 Applications: tension and compression testing machine tensile testing experimental platform
  • LSZ-F04C

  • SZOBTE

Availability:
Quantity:

Product Description

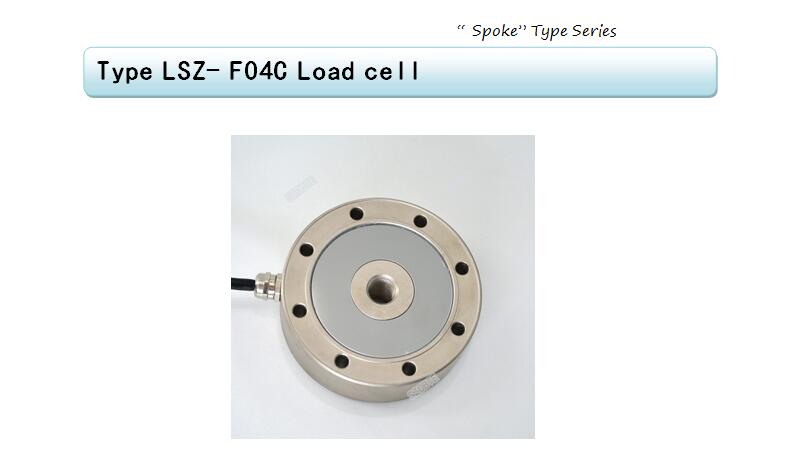

QQ截图20191024103337

Feature



n  Senior alloy steel

n  Low height, strong side force resistance

l  Applications: tension and compression testing machine tensile testing experimental platform





 Capacities

0-100kg, 200kg, 300kg, 500kg, 1t, 2t, 3t



  Specification



Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.03% of rated output

Temp. effect on output

0.002% of applied output/

Temp. Effect on zero

0.002% of rated output/

Safe temp. Range

-10 to+70

Temp.Compensated

-10 to+40

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-F04C/100kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

Force Direction

QQ截图20191024103600

Note: The information is for reference only. The details are subject to orders
