LSZ-A02 Load Cell

n Multi-column load cell

n Senior alloy steel

n Easy to install, stable & reliable

l Applications: Apply to testing machine, batching scales, crane scales, pull and push, button tester and special scales,etc
  • LSZ-A02

  • SZOBTE

Availability:
Quantity:

Product Description

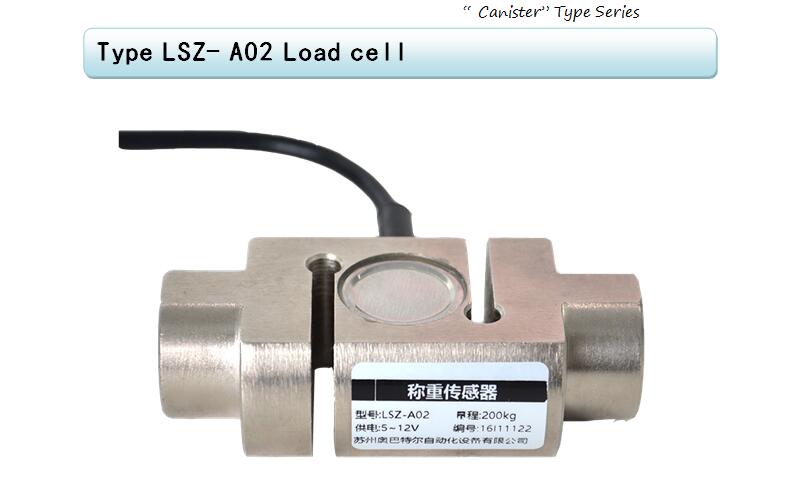

QQ截图20191022135926

  Feature



n  Multi-column load cell

n  Senior alloy steel

n  Easy to install, stable & reliable

l  Applications: Apply to testing machine, batching scales, crane scales, pull and push, button tester and special scales,etc


Capacities

0-100kg,200kg,300kg,500kg,700kg,1t,2t,3t,5t,10t,15t,20t



 Specification

Rated Output

2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.1% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.05% of rated output/

Safe temp. Range

-10 to+70

Temp.Compensated

-10 to+30

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-A02/100kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

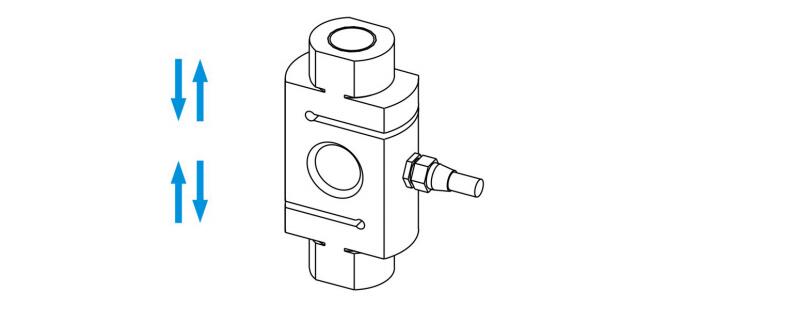

Force Direction

QQ截图20191022140132

Note: The information is for reference only. The details are subject to orders
