LSZ-F03D
SZOBTE
LSZ-F03D
| Quantity: | |
|---|---|
Product Description

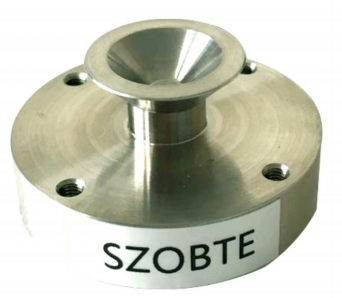

LSZ-F03D Spoke Type Load Cell “ Spoke” Type Series
Feature
n Senior stainless steel
n Low height, strong side force resistance
l Applications: Suitable for testing machine, industrial weighing systems, limited space applications，etc
Capacities
0-20kg, 30kg, 50kg, 100kg, 200kg, 300kg
Specification
Rated Output | 1.0-2.0mV/V±1% |
Zero Balance | ±1% of rated output |
Creep After 30 Minutes | ±0.03% of rated output |
Nonlinearity | ±0.03% of rated output |
Hysteresis | ±0.03% of rated output |
Repeatability | ±0.03% of rated output |
Temp. effect on output | ≤0.002% of applied output/℃ |
Temp. Effect on zero | ≤0.002% of rated output/℃ |
Safe temp. Range | -10℃ to+70℃ |
Temp.Compensated | -10℃ to+40℃ |
Safe Overload | 150% |
Input Impedance | 387 Ω±20Ω |
Output Impedance | 350 Ω±5Ω |
Insulation Resistance | ≥5000MΩ(50V DC) |
Rated Excitation | 5V DC/AC |
Maximum Excitation | 10V DC/AC |
Protection Class | IP65 |
Construction | 2m |
type | LSZ-F03D/20kg |
Cable Color Code | Red(+E)Black(-E)Green(+S)White(-S) |

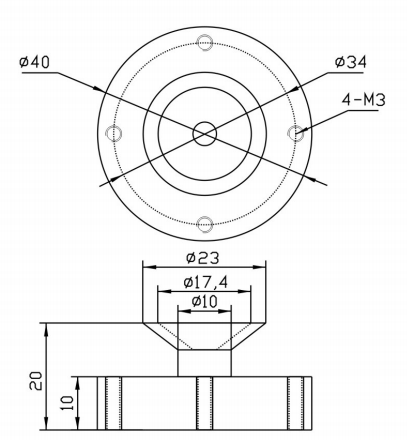

Dimensions
Force direction
Note: The information is for reference only. The details are subject to orders
