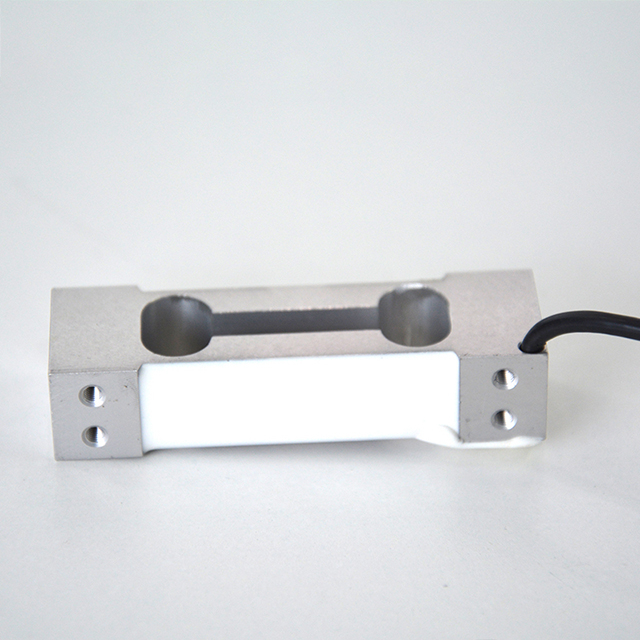

LSZ-S67 Load cell

  • LSZ-S67

  • SZOBTE

Availability:
Quantity:

Product Description

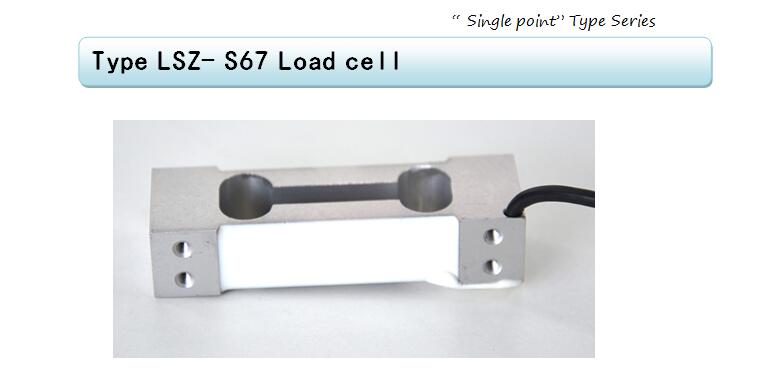

QQ截图20191021173325

  Feature



n  Single point load cell

n  Senior aluminum

n  High accuracy

n  Easy to install

n  High protection class

l  Applications: Suitable for testing machine, package weighing systems, parts counting and small hopper scales, bench scales, etc


 Capacities

0-1kg, 2kg, 3kg, 5kg, 6kg, 10kg, 15kg, 20kg

  Specification



Rated Output

1.0-2.0mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.03% of rated output

Nonlinearity

±0.03% of rated output

Hysteresis

±0.03% of rated output

Repeatability

±0.03% of rated output

Temp. effect on output

0.002% of applied output/

Temp. Effect on zero

0.002% of rated output/

Safe temp. Range

-10 to+70

Temp.Compensated

-10 to+40

Safe Overload

150%

Input Impedance

450Ω±10Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

  150mm

type

LSZ-S67/60kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

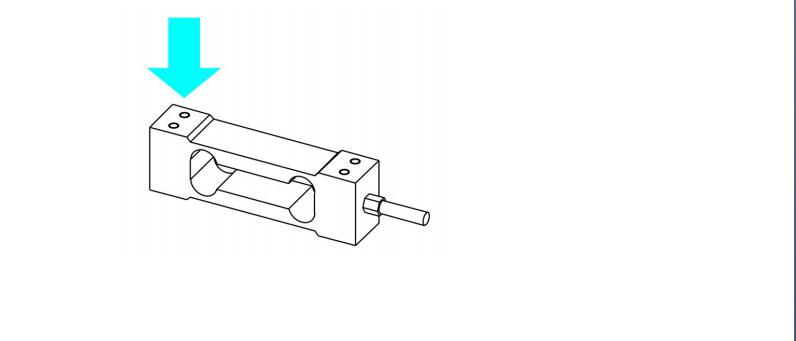

Force Direction
QQ截图20191021173536

Note: The information is for reference only. The details are subject to orders
