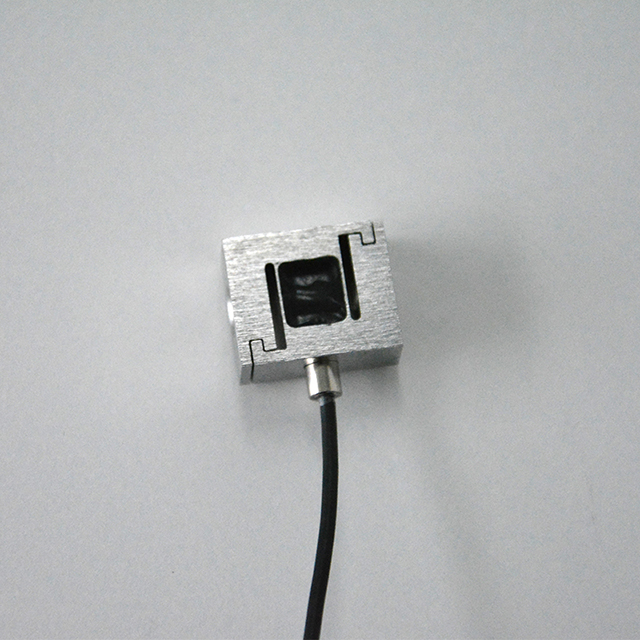

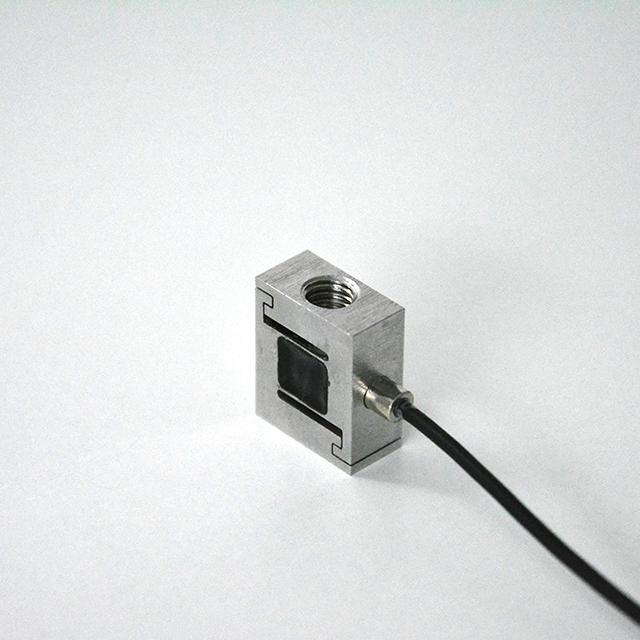

CL-BSM04 S-Type Load Cell

S load cell

Senior stainless steel

Easy to install, stable & reliable

Apply to testing machine, batching scales,crane scales,pull and push,Button Tester and special scales,etc.
  • CL-BSM04
  • SZOBTE
  • CL-BSM04
Availability:
Quantity:

Product Description


CL-BSM04 S-Type Load Cell

Feature



S  load cell

Senior stainless steel

Easy to install, stable & reliable

Apply to testing machine, batching scales,crane scales,pull and push,Button Tester  and special scales,etc.




Capacities

2kg,5kg,10kg,20kg,30kg

 Specification



Rated Output

1.0~1.5mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.1% of rated output

Repeatability

±0.3% of rated output

Temp. effect on output

0.05% of applied output/

Temp. Effect on zero

0.05% of rated output/

Safe temp. Range

-10to+70

Temp.Compensated

-10to+30

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP67

Construction

2m

type

CL-BSM04/2kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

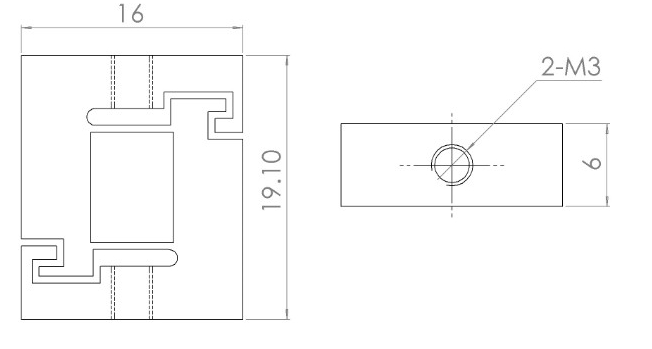

 Dimensions




Picture 3


                    Size(mm)

CAP(kg)

A

  B

  C

M

0-10kg

16

  19.1

6

M3

20kg

16

19.1

6

M4

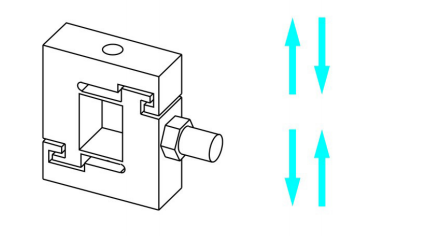

Force Direction




图片 6


Note: The information is for reference only. The details are subject to orders
