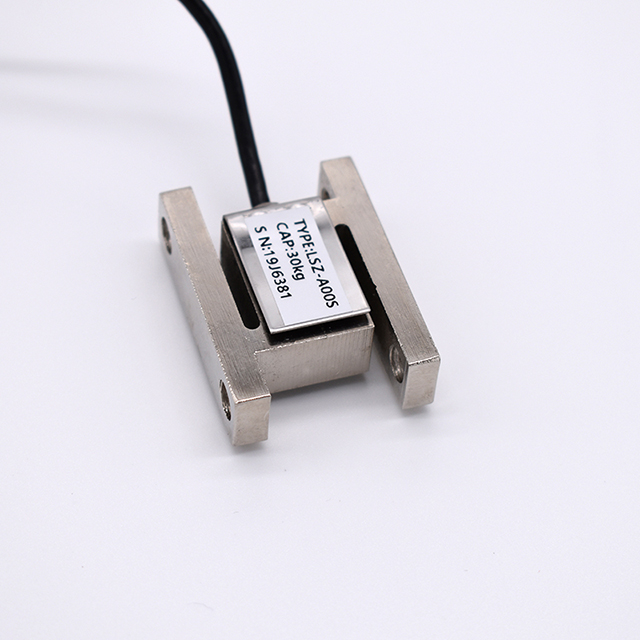

LSZ-A00S load cell

S load cell
Senior alloy steel
Easy to install, stable & reliable
Apply to testing machine, batching scales, crane scales, pull and push, Button Tester and special scales, etc.
  • LSZ-A00S
  • SZOBTE
Availability:
Quantity:

Product Description

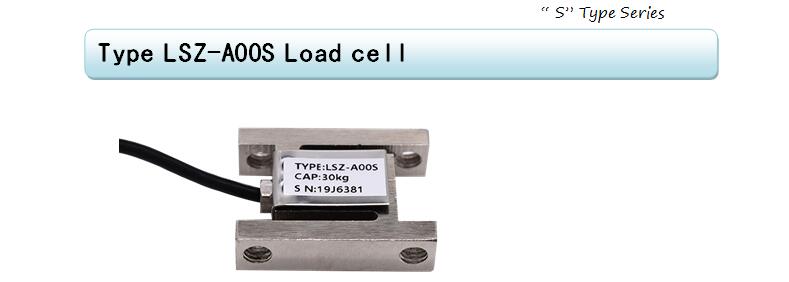

QQ截图20191024092646

Feature



n  S  load cell

n  Senior alloy steel

n  Easy to install, stable & reliable

l  Apply to testing machine, batching scales, crane scales, pull and push, Button Tester  and special scales, etc.

Capacities

0-10kg ,20kg,30kg,50kg

Specification



Rated Output

2.0 mV/V±1%

Zero Balance

±1% of rated output

Creep After 30 Minutes

±0.05% of rated output

Nonlinearity

±0.3% of rated output

Hysteresis

±0.03% of rated output

Repeatability

0.3% of rated output

Temp. effect on output

0.03% of rated output

Temp. Effect on zero

0.05% of rated output/

Safe temp. Range

-10 to+70

Temp.Compensated

-10 to+30

Safe Overload

150%

Input Impedance

387 Ω±20Ω

Output Impedance

350 Ω±5Ω

Insulation Resistance

5000MΩ(50V DC)

Rated Excitation

5V DC/AC

Maximum Excitation

10V DC/AC

Protection Class

IP65

Construction

2m

type

LSZ-A00S/10kg

Cable Color Code

Red(+E)Black(-E)Green(+S)White(-S)

Force Direction

QQ截图20191024092811

Note: The information is for reference only. The details are subject to orders
